Anbieter: Condor

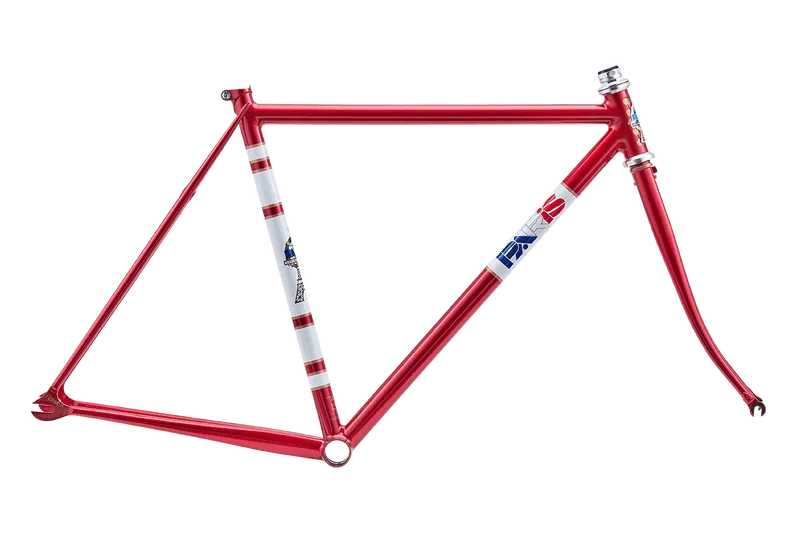

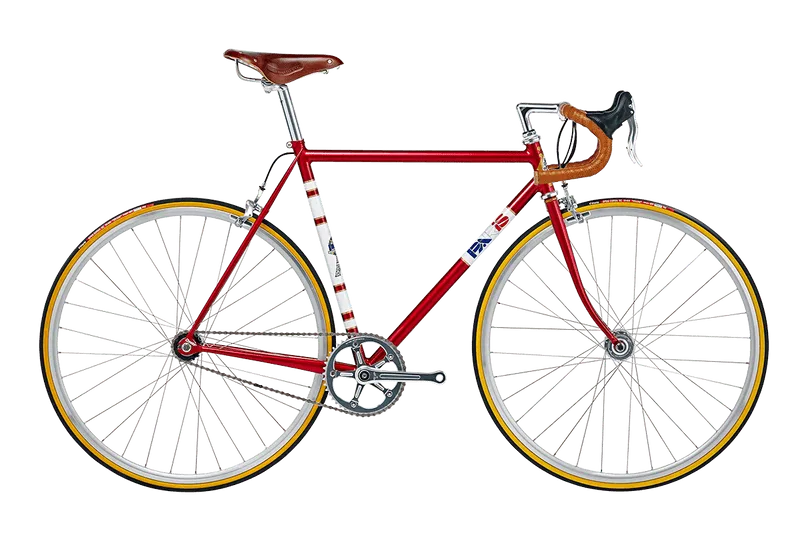

Paris Path Frameset

559,13 €~~1.058,80 €~~47% OFF

5 in den letzten 5 Stunden verkauft

Noch 50,00 € bis zum kostenlosen Versand

Voraussichtliche Lieferzeit : 6. Oktober - 8. Oktober.

Garantiert sicher bezahlen

Beschreibung

Handmade in Italy

Paris Cycles started in early 1940s by Harry Rensch, a close friend and neighbour of Monty Young. The lightweight thoroughbred red frames soon became sought after pieces, famous for their continental flair. Condor Cycles recreated what was formerly known as the Tour de France frame, using the original bilamination design. The result is the latest incarnation of Paris by Condor is a handmade lightweight, fillet brazed steel tubing with manganese and vanadium. Laser cut bilaminations and a frame livery with a twist on a retro style icon crafted using modern technology.


Bi-lamination design A bi-lamination requires more precision in the manufacturing process than cutting a lug. First, on a flat sheet of steel, a design is cut. It is then manipulated by hand to join both ends together, creating the look of a lug with a join that is lighter. Tubing must be cut and mitred exactly to the curve of the bi-lam before being fitted together. The fit must be perfect otherwise the process must begin again.	Fillet brazed A laborious technique of joining tubes that produces a smooth finish with almost no weld visible. Brass is built up around two tubes. The frame is then cooled and cleaned using water and a wire brush. Finally the brass is filed down by hand to achieve a flat finish.	Solid top eyes Where the seat stays meet the top tube, the material is solid metal, which is then brazed to the tubes of the stays. The design creates a stronger join, key for small diameter tubes as used on the Paris. The finish is true to the original 1920s Paris frame design.

Specification

Frame Dedacciai SAT 14.5 steel tubing, heat treated for tensile strength
Fork Double plate steel fork crown
Frame weight 1800g (55cm frame, painted)
Fork weight 300g
Sizes 49, 52, 55, 58, 61cm
Colours Flam Red/Gold

KEY FEATURES

Fillet brazed with laser cut bilamination
Drilling for front and rear brake. For road use a front brake must be fitted

Engraved drop outs and bottom bracket
Top eye seat stays
Hand made to obtain original Paris shape
Available with road or single speed dropouts
Can be fitted with a front and rear brake for road use
Find out more about Paris here
